CASIC HW-310A MUTIPURPOSE FIXED-WING UAV
INQUIRY
Product Overview

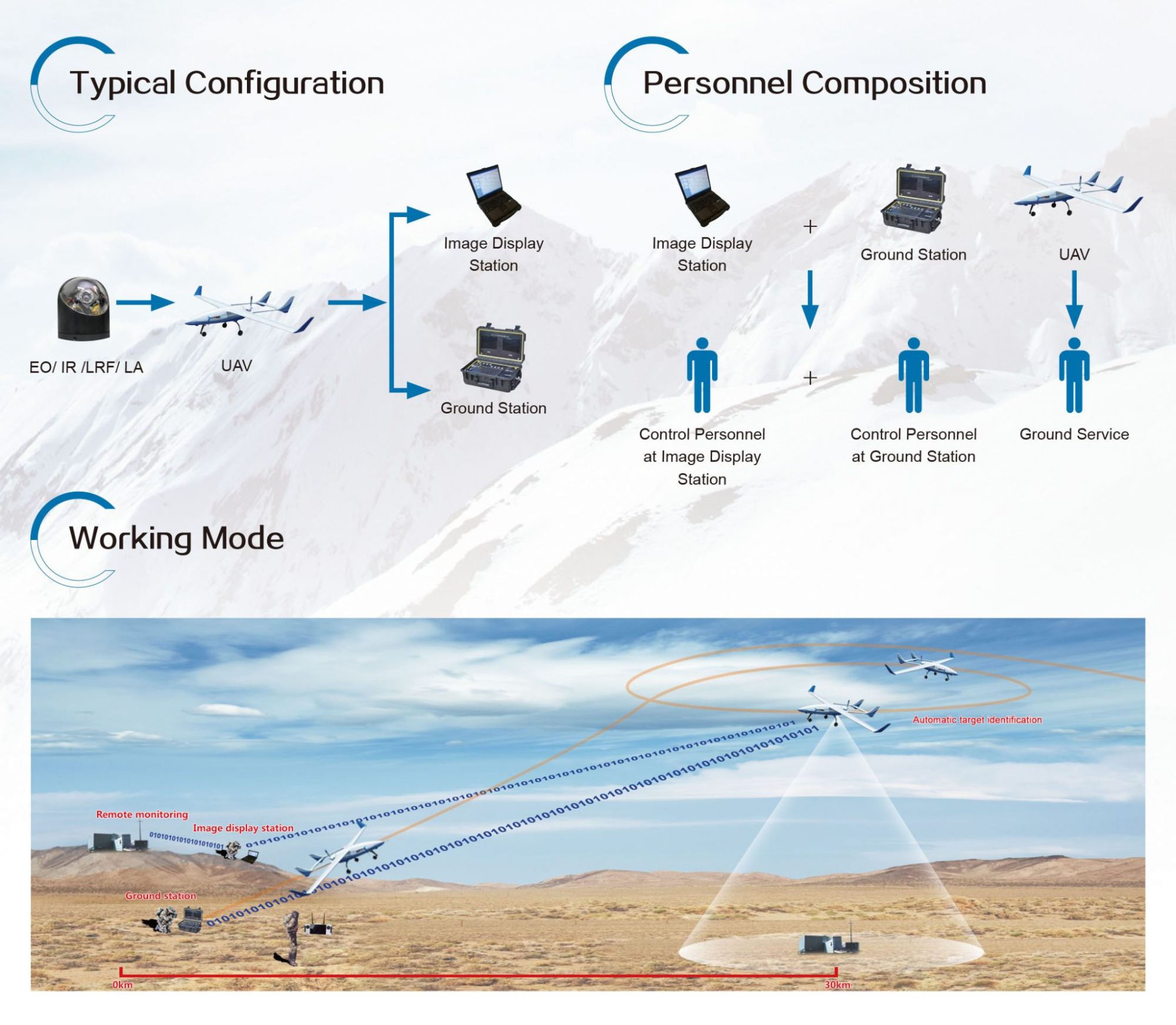

- HW-310A UAV system, as a kind of multi-purpose, small- sized, mid-low altitude, low-speed unmanned flight platform, adopts push-back twin-boom aerodynamic configuration. With convenient change of payloads such as visible light/IR photoelectric pod, aerial camera, etc, it can execute monitoring, aerial photography, aerial survey and other missions.
- High control precision
High reliability
Mature space technology
Gimbaled EO or IR or LRF or LA Payload
High maneuverability
Modular design
-
Specifications
- UAV dimensions (length×wingspan×height) 3.10m×4.60m×0.99m
- Ceiling 3000m(sea level)
- Max. telemetry and control distance 50km
- Cruise speed 100km/h-120km/h
- Max. speed 130km/h
- Endurance 4h-6h
- Max. take-off weight 75kg
- Max. mission payload 15kg
- Navigation mode Combined navigation
- Propulsion system One double-cylinder piston engine
- Take-off mode Wheeled
- Recovery mode Wheeled or parachute
